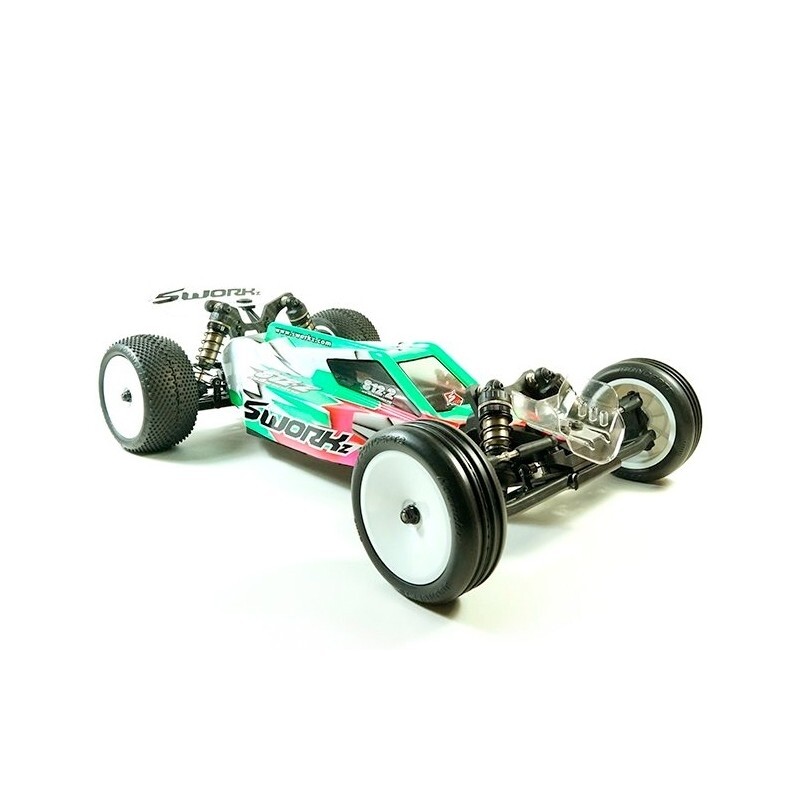

SWORKz S12-2D Dirt EVO 1/10 2WD Buggy kit
The SWORKz S12-2D (Dirt Edition) 1/10 2WD is designed for pure racing. The geometry of the car provides optimized corner speed compared with easy handling on dirt(clay) conditions and on medium to low grip carpet tracks.
The S12-2D features a new dirt version gear box system, fitted on a new T7075 hard anodized and lightened aluminum chassis, with a new layout that allows up to 6 different battery positions. The flex of the chassis can be changed by adjusting the sideguards.
The S12-2D comes with a brand new designed 1/10 Pro-Shock System. It has got new Emulsion Precision Plastic Shock Caps and Shock Pistons with Seal Parts. The S12-2D Kit includes 4mm dirt version Carbon front shock towers and a new designed front C-Hub geometry. SWORKz Teflon coated shock shafts give the smoothest function, you can imagine. Black Line shock springs with a new designed, rotation protected spring holder, are standard in the SWORKz S12-2D kit too.
Adjustable Ackermann plate and Carbon steering plates are already in the kit. The S12-2D has got new angled lower arms (Gull Wings) that provide a lower Shock position which leads to a lower center of gravity.
The kit is equipped with a quick release system for the ball differential, which can be mounted in 3 different positions. The rear lower arms are angled and the rear shock tower of the S12-2D has got different height positions. The weight of the gearbox is optimized with a perfect relation between size and strength.
The rear shock tower of the S12-2D is made of High Quality Carbon. With the wing mount holder, height and angle of the wing can be adjusted. The rear width of the S12-2D can be changed through rear hubs and rear CVD modularity.
The SWORKz S12-2D is equipped with a front sway bar and a completely new developed rear sway bar holder system.
The 2-Pad Slipper of the SWORKz S12-2D comes with hard anodized plates, high temperature resistant slipper pads and a spur gear protection with engraved SWORKz logo.
The S12-2D body shell is tested to provide the best aerodynamic behavior. The SWORKz development team focused on using materials, which have the highest quality standards, we are asking for when designing a SWORKz product. You will find only 100% SWORKz quality in the S12-2D kit.
Features:
T7075 hard anodized & lightened aluminum chassis
djustable flex system with various sideguards
6 different battery positions
4mm Carbon shock tower
New C-Hub geometry
Changeable Ackerman plate
Carbon steering knuckle plates
Front sway bar
Super light anodized front wheel axles
Front wing mount
Front aluminum toe in plate
Front lower arms in angled design
Easy adjustable Ackerman plate
Adjustable differential position
Quick change ball differential system
Lower shock position design with adjustable shock tower position
Brand new designed 1/10 Pro-Shock System
Adjustable rear wing height
Adjustable rear wing angle
Rear width adjustable with hubs included length adjustable CVD
Fully adjustable square aluminum toe in plate with SWORKz logo
New designed rear sway bar holder
Rear wheel hex hard anodized
Rear Carbon Shock tower
Super light CAD optimized gearbox
2 Pad Slipper System with hard anodized plates
Slipper Anti-Clock rotation adjustment
High temperature resistant slipper pads
Spur gear protection with laser Logo
Precision plastic emulsion shock cap system
Unique designed shock stud screws
Hard anodized stock studs
Black line shock spring
Rotation protected spring holder
Teflon hard coated shock shaft
Hard coated shock body
6 Ball bearings servo system
Quick release electronic plate
Battery pad included
Balanced motor position
Body shell with optimized aerodynamic design
Specification:
Length: 410mm
Width：242-248mm
Height：148mm
Ground Clearance：40mm
Wheelbase: 282-284mm
Track：F:220mm /R221mm
Gear Ratio: S:81/21T
Weight: 1450g+/-10g (Race Condition)
