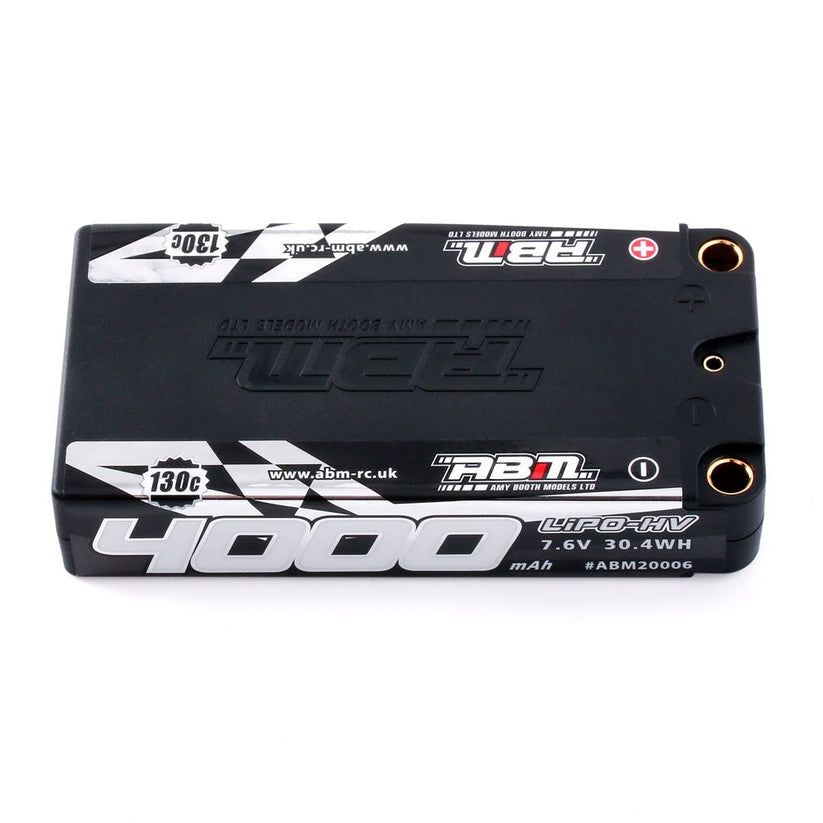

Configuration: Shorty LCG Style
Battery pack weight: 145 ± 5.6g
Length: 92.5mm +0/-1mm
Width: 47mm +0/-1mm
Thickness: 17.8mm +0/-1mm
Casing material: ABS+PC
Casing nominal thickness: 1.0mm
Casing sealing: Sonic-welding
Discharge point: dia. 5mm tubes (positive / negative terminals)
Charging port: dia. 2mm tube balance
Ratings
Nominal Voltage: 7.6V
Nominal Capacity: 3900-4100mAh
Nominal Impedance: .9-1.3 mOhm per cell
Charging method: CC/CV mode (high quality LiPo chargers only)
Charge cutoff voltage: 8.40V ±0,05V (BRCA Rules allow 4.20 per cell)
Charging current: 4.0 amps(typical)
2C charging possible, with special attention for accurate cutoff
Discharge cutoff voltage: 6.2V ±0,05V
Discharge continuous: 65c
Discharge pulse (max): 130c (less than 6sec. for each pulse)
Discharge Temp range: -20~+60 deg-C
Charging Temp range: 0~ +45 deg-C
Storage Temperature: -20~+45 deg-C
Storage Humidity: 65 ±20% RH
